Dalam kawalan bendalir perindustrian moden, Pengatur Siri Fisher 627  digunakan secara meluas untuk pengawalaturan tekanan dalam pengedaran gas asli, dandang perindustrian, sistem pemampat udara dan pelbagai persekitaran media menghakis. Disebabkan reka bentuk tindakan langsungnya, siri ini mempamerkan kestabilan yang luar biasa di bawah keadaan beban yang tidak menentu, menjadikannya asas pengawalaturan gas perindustrian.

Sebagai produk teras yang dibekalkan oleh Xi'an Yunrui Trading Co., Ltd. (Yunrui), kami menyediakan rangkaian penuh stok dari DN20 hingga DN50 dan berdedikasi untuk membantu jurutera dengan setiap perincian, daripada pemilihan awal hingga aplikasi lapangan.

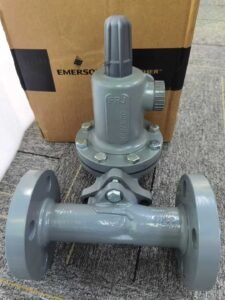

Original Fisher 627 Series Regulator from Chinese supplier Yunrui.

1. Analisis Struktur: Logik Kejuruteraan untuk Keadaan yang Keras

Teras reka bentuk Fisher 627 terletak pada sistem imbangan daya ketepatan dan kebolehsuaian bahan yang tinggi, yang membolehkannya meliputi senario daripada gas bahan api standard hingga pemprosesan kimia tekanan tinggi.

Pemilihan Bahan dan Saiz

  1. Badan Besi Mulur: Model biasa termasuk 627-496, terdapat dalam DN25 atau DN50. Disebabkan oleh keberkesanan kosnya yang tinggi, ia kerap digunakan di stesen pengawal gas bandar dan sistem udara standard.

  2. Badan Keluli (WCB): Direka untuk persekitaran tekanan tinggi dalam industri minyak dan gas atau petrokimia, memberikan kekuatan mekanikal yang unggul dan kapasiti galas tekanan untuk menahan turun naik suhu ambien yang teruk.

  3. Badan Keluli Tahan Karat (CF8M/316SS): Disesuaikan untuk media proses gas masam (mematuhi NACE) atau menghakis secara kimia, memastikan badan injap bebas daripada lubang atau perforasi semasa operasi jangka panjang.
    1. Structural Analysis: Engineering Logic for Harsh ConditionsThe core of the Fisher 627 design lies in its precision force-balance system and high material adaptability, allowing it to cover scenarios ranging from standard fuel gas to high-pressure chemical processing.Material and Size SelectionDuctile Iron Body: Common models include the 627-496, available in DN25 or DN50. Due to its high cost-effectiveness, it is frequently used in city gas regulator stations and standard air systems.Steel Body (WCB): Designed for high-pressure environments in oil and gas or petrochemical industries, providing superior mechanical strength and pressure-bearing capacity to withstand severe ambient temperature fluctuations.Stainless Steel Body (CF8M/316SS): Customized for sour gas (NACE compliant) or chemically corrosive process media, ensuring the valve body remains free from pitting or perforation during long-term operation.The Critical Role of the OrificeThe 627 series offers orifice sizes ranging from 1/8" to 1/2". A smaller orifice can withstand higher inlet pressures but provides lower flow capacity (Cv value).Selection Tip: It is recommended to set the maximum gas demand at 70%-80% of the valve's rated capacity to achieve optimal regulation accuracy and prevent valve plug hunting.2. Typical Model Codes and Application MatchingUnderstanding the Fisher 627 suffix codes is vital for precise selection, as these suffixes define the functional boundaries of the valve.Model CodeKey Technical FeaturesTypical Application MatchingFisher 627Standard direct-acting regulatorWidely used in gas distribution, commercial buildings, and industrial boilers.Fisher 627HHigh Pressure output versionEquipped with a heavy-duty spring for outlet pressure settings up to 500 psi.Fisher 627RInternal Relief functionFeatures an internal relief valve that automatically vents overpressure to enhance safety.Fisher 627WLiquid Service optimizationOptimized for water, hydraulic oil, and other liquid media to prevent fluid shock.Fisher 627OSXSlam-shut versionIntegrates overpressure/underpressure shut-off for high-security gate stations.3. Field Calibration Guide: Setting Zero and SpanWhen calibrating the Fisher 627, it is essential to strictly follow downstream pressure relief procedures. Never force the compression of the spring in a fully closed state, as this may damage the diaphragm.Setting Outlet Pressure: This is achieved by rotating the adjustment bolt at the top of the actuator. Rotating clockwise increases the pressure of the internal adjustment spring, thereby raising the outlet pressure setting.Verifying Spring Range: Every 627 has a specific spring pressure range (e.g., 5-20 psi or 70-150 psi). Do not attempt to achieve pressures outside the design range by over-compressing the spring, as this leads to spring fatigue or diaphragm damage. If the required setting does not match, contact Yunrui immediately to exchange for the correct spring assembly.4. Troubleshooting: Common Field Issues and SolutionsDuring long-term operation, gas quality or environmental factors may cause regulation anomalies. The Yunrui technical team has summarized the following diagnostic guide:SymptomPotential CauseSolutionOutlet pressure creep (Failure to lock up)Debris on the orifice or worn valve disk.Clean the orifice or replace the valve disk seal.Pressure oscillation at low flow ratesValve is oversized; orifice size is mismatched.Replace with a smaller orifice or increase downstream buffer volume.Leakage from the ventDamaged diaphragm or internal relief valve activation.Check if outlet pressure is exceeded; if pressure is normal, replace the diaphragm.Sluggish response or failure to reach setpointBroken adjustment spring or jammed internal linkage.Disassemble the actuator, inspect, and replace damaged internal parts.Installation Tip: It is recommended to install the actuator with the vent pointing downward to prevent rain, snow, or dust from accumulating in the diaphragm casing, ensuring sensitive regulation.5. Why Choose Yunrui as Your Partner?Comprehensive Material and Size Stock: We maintain a constant inventory of DN25 and DN50 sizes in ductile iron, steel, and stainless steel. Common models are ready for immediate shipment to meet emergency repairs and new project requirements.Full-Loop Technical Support: We don't just sell products; we provide free orifice size conversion, outlet pressure setting guidance, and online remote troubleshooting support.Supply Chain Advantage and Pricing Transparency: Leveraging the procurement system of Xi'an Yunrui Trading Co., Ltd. (Yunrui), we eliminate redundant middleman costs, ensuring we provide you with highly competitive preferential quotes.If you have any questions regarding the selection parameters, material compatibility, or specific application suitability of the Fisher 627 series, please feel free to contact Yunrui.

Peranan Kritikal Orifis

Siri 627 menawarkan saiz orifis antara 1/8″ hingga 1/2″. Orifis yang lebih kecil boleh menahan tekanan salur masuk yang lebih tinggi tetapi memberikan kapasiti aliran (nilai Cv) yang lebih rendah.

Petua Pemilihan: Adalah disyorkan untuk menetapkan permintaan gas maksimum pada 70%-80% bagi kapasiti undian injap untuk mencapai ketepatan pengawalaturan yang optimum dan mengelakkan pemburuan palam injap.

2. Kod Model Lazim dan Padanan Aplikasi

Memahami kod akhiran Fisher 627 adalah penting untuk pemilihan yang tepat, kerana akhiran ini menentukan sempadan fungsi injap.

Kod Model Ciri-ciri Teknikal Utama Pemadanan Aplikasi Lazim
Fisher 627 Pengawal selia bertindak langsung standard Digunakan secara meluas dalam pengedaran gas, bangunan komersial dan dandang perindustrian.
Fisher 627H Versi output Tekanan Tinggi Dilengkapi dengan spring tugas berat untuk tetapan tekanan keluar sehingga 500 psi.
Fisher 627R Fungsi Pelepasan Dalaman Mempunyai injap pelega dalaman yang secara automatik melepaskan tekanan berlebihan untuk meningkatkan keselamatan.
Fisher 627W Pengoptimuman Perkhidmatan Cecair Dioptimumkan untuk air, minyak hidraulik dan media cecair lain bagi mengelakkan kejutan bendalir.
Fisher 627OSX Versi tutup rapat Mengintegrasikan penutupan tekanan lampau/tekanan bawah untuk stesen pintu pagar keselamatan tinggi.

3. Panduan Penentukuran Medan: Menetapkan Sifar dan Rentang

Semasa menentukur Fisher 627, adalah penting untuk mengikuti prosedur pelepasan tekanan hiliran dengan ketat. Jangan sekali-kali memaksa mampatan spring dalam keadaan tertutup sepenuhnya, kerana ini boleh merosakkan diafragma.

  1. Menetapkan Tekanan Alur Keluar: Ini dicapai dengan memutarkan bolt pelarasan di bahagian atas penggerak. Berputar mengikut arah jam akan meningkatkan tekanan spring pelarasan dalaman, sekali gus meningkatkan tetapan tekanan alur keluar.

  2. Mengesahkan Julat Spring: Setiap 627 mempunyai julat tekanan spring tertentu (cth., 5-20 psi atau 70-150 psi). Jangan cuba mencapai tekanan di luar julat reka bentuk dengan memampatkan spring secara berlebihan, kerana ini akan menyebabkan keletihan spring atau kerosakan diafragma. Jika tetapan yang diperlukan tidak sepadan, hubungi Yunrui dengan segera untuk menukar pemasangan spring yang betul.
    1. Structural Analysis: Engineering Logic for Harsh ConditionsThe core of the Fisher 627 design lies in its precision force-balance system and high material adaptability, allowing it to cover scenarios ranging from standard fuel gas to high-pressure chemical processing.Material and Size SelectionDuctile Iron Body: Common models include the 627-496, available in DN25 or DN50. Due to its high cost-effectiveness, it is frequently used in city gas regulator stations and standard air systems.Steel Body (WCB): Designed for high-pressure environments in oil and gas or petrochemical industries, providing superior mechanical strength and pressure-bearing capacity to withstand severe ambient temperature fluctuations.Stainless Steel Body (CF8M/316SS): Customized for sour gas (NACE compliant) or chemically corrosive process media, ensuring the valve body remains free from pitting or perforation during long-term operation.The Critical Role of the OrificeThe 627 series offers orifice sizes ranging from 1/8" to 1/2". A smaller orifice can withstand higher inlet pressures but provides lower flow capacity (Cv value).Selection Tip: It is recommended to set the maximum gas demand at 70%-80% of the valve's rated capacity to achieve optimal regulation accuracy and prevent valve plug hunting.2. Typical Model Codes and Application MatchingUnderstanding the Fisher 627 suffix codes is vital for precise selection, as these suffixes define the functional boundaries of the valve.Model CodeKey Technical FeaturesTypical Application MatchingFisher 627Standard direct-acting regulatorWidely used in gas distribution, commercial buildings, and industrial boilers.Fisher 627HHigh Pressure output versionEquipped with a heavy-duty spring for outlet pressure settings up to 500 psi.Fisher 627RInternal Relief functionFeatures an internal relief valve that automatically vents overpressure to enhance safety.Fisher 627WLiquid Service optimizationOptimized for water, hydraulic oil, and other liquid media to prevent fluid shock.Fisher 627OSXSlam-shut versionIntegrates overpressure/underpressure shut-off for high-security gate stations.3. Field Calibration Guide: Setting Zero and SpanWhen calibrating the Fisher 627, it is essential to strictly follow downstream pressure relief procedures. Never force the compression of the spring in a fully closed state, as this may damage the diaphragm.Setting Outlet Pressure: This is achieved by rotating the adjustment bolt at the top of the actuator. Rotating clockwise increases the pressure of the internal adjustment spring, thereby raising the outlet pressure setting.Verifying Spring Range: Every 627 has a specific spring pressure range (e.g., 5-20 psi or 70-150 psi). Do not attempt to achieve pressures outside the design range by over-compressing the spring, as this leads to spring fatigue or diaphragm damage. If the required setting does not match, contact Yunrui immediately to exchange for the correct spring assembly.4. Troubleshooting: Common Field Issues and SolutionsDuring long-term operation, gas quality or environmental factors may cause regulation anomalies. The Yunrui technical team has summarized the following diagnostic guide:SymptomPotential CauseSolutionOutlet pressure creep (Failure to lock up)Debris on the orifice or worn valve disk.Clean the orifice or replace the valve disk seal.Pressure oscillation at low flow ratesValve is oversized; orifice size is mismatched.Replace with a smaller orifice or increase downstream buffer volume.Leakage from the ventDamaged diaphragm or internal relief valve activation.Check if outlet pressure is exceeded; if pressure is normal, replace the diaphragm.Sluggish response or failure to reach setpointBroken adjustment spring or jammed internal linkage.Disassemble the actuator, inspect, and replace damaged internal parts.Installation Tip: It is recommended to install the actuator with the vent pointing downward to prevent rain, snow, or dust from accumulating in the diaphragm casing, ensuring sensitive regulation.5. Why Choose Yunrui as Your Partner?Comprehensive Material and Size Stock: We maintain a constant inventory of DN25 and DN50 sizes in ductile iron, steel, and stainless steel. Common models are ready for immediate shipment to meet emergency repairs and new project requirements.Full-Loop Technical Support: We don't just sell products; we provide free orifice size conversion, outlet pressure setting guidance, and online remote troubleshooting support.Supply Chain Advantage and Pricing Transparency: Leveraging the procurement system of Xi'an Yunrui Trading Co., Ltd. (Yunrui), we eliminate redundant middleman costs, ensuring we provide you with highly competitive preferential quotes.If you have any questions regarding the selection parameters, material compatibility, or specific application suitability of the Fisher 627 series, please feel free to contact Yunrui.

4. Penyelesaian Masalah: Isu dan Penyelesaian Lapangan yang Biasa

Semasa operasi jangka panjang, kualiti gas atau faktor persekitaran boleh menyebabkan anomali peraturan. Pasukan teknikal Yunrui telah meringkaskan panduan diagnostik berikut:

Simptom Punca Berpotensi Penyelesaian
Rayapan tekanan keluar (Kegagalan untuk mengunci) Serpihan pada orifis atau cakera injap yang haus. Bersihkan orifis atau gantikan pengedap cakera injap.
Ayunan tekanan pada kadar aliran rendah Injap terlalu besar; saiz orifis tidak sepadan. Gantikan dengan orifis yang lebih kecil atau tingkatkan isipadu penimbal hiliran.
Kebocoran dari lubang udara Diafragma atau pengaktifan injap pelega dalaman yang rosak. Periksa sama ada tekanan keluar telah melebihi tekanan; jika tekanan adalah normal, gantikan diafragma.
Tindak balas yang perlahan atau kegagalan untuk mencapai titik set Spring pelarasan rosak atau sambungan dalaman tersekat. Bongkarkan penggerak, periksa dan gantikan bahagian dalaman yang rosak.

Petua Pemasangan: Adalah disyorkan untuk memasang penggerak dengan lubang udara menghala ke bawah untuk mengelakkan hujan, salji atau habuk daripada terkumpul di dalam selongsong diafragma, bagi memastikan peraturan yang sensitif.
1. Structural Analysis: Engineering Logic for Harsh ConditionsThe core of the Fisher 627 design lies in its precision force-balance system and high material adaptability, allowing it to cover scenarios ranging from standard fuel gas to high-pressure chemical processing.Material and Size SelectionDuctile Iron Body: Common models include the 627-496, available in DN25 or DN50. Due to its high cost-effectiveness, it is frequently used in city gas regulator stations and standard air systems.Steel Body (WCB): Designed for high-pressure environments in oil and gas or petrochemical industries, providing superior mechanical strength and pressure-bearing capacity to withstand severe ambient temperature fluctuations.Stainless Steel Body (CF8M/316SS): Customized for sour gas (NACE compliant) or chemically corrosive process media, ensuring the valve body remains free from pitting or perforation during long-term operation.The Critical Role of the OrificeThe 627 series offers orifice sizes ranging from 1/8" to 1/2". A smaller orifice can withstand higher inlet pressures but provides lower flow capacity (Cv value).Selection Tip: It is recommended to set the maximum gas demand at 70%-80% of the valve's rated capacity to achieve optimal regulation accuracy and prevent valve plug hunting.2. Typical Model Codes and Application MatchingUnderstanding the Fisher 627 suffix codes is vital for precise selection, as these suffixes define the functional boundaries of the valve.Model CodeKey Technical FeaturesTypical Application MatchingFisher 627Standard direct-acting regulatorWidely used in gas distribution, commercial buildings, and industrial boilers.Fisher 627HHigh Pressure output versionEquipped with a heavy-duty spring for outlet pressure settings up to 500 psi.Fisher 627RInternal Relief functionFeatures an internal relief valve that automatically vents overpressure to enhance safety.Fisher 627WLiquid Service optimizationOptimized for water, hydraulic oil, and other liquid media to prevent fluid shock.Fisher 627OSXSlam-shut versionIntegrates overpressure/underpressure shut-off for high-security gate stations.3. Field Calibration Guide: Setting Zero and SpanWhen calibrating the Fisher 627, it is essential to strictly follow downstream pressure relief procedures. Never force the compression of the spring in a fully closed state, as this may damage the diaphragm.Setting Outlet Pressure: This is achieved by rotating the adjustment bolt at the top of the actuator. Rotating clockwise increases the pressure of the internal adjustment spring, thereby raising the outlet pressure setting.Verifying Spring Range: Every 627 has a specific spring pressure range (e.g., 5-20 psi or 70-150 psi). Do not attempt to achieve pressures outside the design range by over-compressing the spring, as this leads to spring fatigue or diaphragm damage. If the required setting does not match, contact Yunrui immediately to exchange for the correct spring assembly.4. Troubleshooting: Common Field Issues and SolutionsDuring long-term operation, gas quality or environmental factors may cause regulation anomalies. The Yunrui technical team has summarized the following diagnostic guide:SymptomPotential CauseSolutionOutlet pressure creep (Failure to lock up)Debris on the orifice or worn valve disk.Clean the orifice or replace the valve disk seal.Pressure oscillation at low flow ratesValve is oversized; orifice size is mismatched.Replace with a smaller orifice or increase downstream buffer volume.Leakage from the ventDamaged diaphragm or internal relief valve activation.Check if outlet pressure is exceeded; if pressure is normal, replace the diaphragm.Sluggish response or failure to reach setpointBroken adjustment spring or jammed internal linkage.Disassemble the actuator, inspect, and replace damaged internal parts.Installation Tip: It is recommended to install the actuator with the vent pointing downward to prevent rain, snow, or dust from accumulating in the diaphragm casing, ensuring sensitive regulation.5. Why Choose Yunrui as Your Partner?Comprehensive Material and Size Stock: We maintain a constant inventory of DN25 and DN50 sizes in ductile iron, steel, and stainless steel. Common models are ready for immediate shipment to meet emergency repairs and new project requirements.Full-Loop Technical Support: We don't just sell products; we provide free orifice size conversion, outlet pressure setting guidance, and online remote troubleshooting support.Supply Chain Advantage and Pricing Transparency: Leveraging the procurement system of Xi'an Yunrui Trading Co., Ltd. (Yunrui), we eliminate redundant middleman costs, ensuring we provide you with highly competitive preferential quotes.If you have any questions regarding the selection parameters, material compatibility, or specific application suitability of the Fisher 627 series, please feel free to contact Yunrui.

5. Mengapa Memilih Yunrui sebagai Rakan Kongsi Anda?

  1. Stok Bahan dan Saiz Komprehensif: Kami mengekalkan inventori berterusan saiz DN25 dan DN50 dalam besi mulur, keluli dan keluli tahan karat. Model biasa sedia untuk penghantaran segera bagi memenuhi pembaikan kecemasan dan keperluan projek baharu.

  2. Sokongan Teknikal Gelung Penuh: Kami bukan sahaja menjual produk; kami menyediakan penukaran saiz orifis percuma, panduan tetapan tekanan saluran keluar dan sokongan penyelesaian masalah jarak jauh dalam talian.

  3. Kelebihan Rantaian Bekalan dan Ketelusan Penentuan Harga: Dengan memanfaatkan sistem perolehan Xi'an Yunrui Trading Co., Ltd. (Yunrui), kami menghapuskan kos orang tengah yang berlebihan, memastikan kami memberikan anda sebut harga keutamaan yang sangat kompetitif.
