主なメリットと利点
-
Unrestricted Installation: Achieve reliable measurement with constant accuracy even with 0 x DN inlet run. This allows for direct installation after pipe bends or T-junctions without pressure loss.
-
Flexible Engineering: The sensor is available with both fixed and lap-joint process connections to suit various piping requirements.
-
Extreme Durability: Certified with EN ISO 12944 corrosion protection, making it ideal for long-term underground or underwater installation.
-
Enhanced Plant Availability: Sensor design is fully compliant with industry-specific requirements, ensuring the device stays operational in tough conditions.
-
Wireless Operation: Access device settings and diagnostics via WLAN without the need to open the housing, maintaining the integrity of the enclosure.
-
Heartbeat Technology: Provides integrated verification and build-up detection to ensure process safety and measurement reliability at all times.
-
Integrated Data Logger: Enables continuous monitoring of measured values directly within the device.
技術的特性
-
International Standards: Carries globally recognized drinking water approvals and is approved for custody transfer according to MI-001 and OIML R49.
-
Robust Protection: The IP68 (Type 6P) rating ensures the device remains functional even when submerged or buried.
-
Material Options: The transmitter housing is available in durable polycarbonate or high-grade aluminium.
-
Simplified Maintenance: The bidirectional measuring principle has no moving parts, resulting in a maintenance-free life cycle.
-
Web Server Integration: Local operation is fast and simple through the built-in web server, requiring no additional software or specialized tools.
アプリケーション

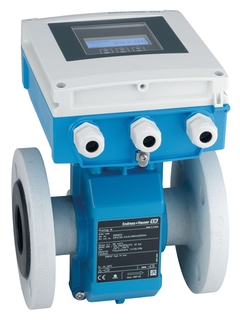

Promag W 400 is the ideal choice for a wide variety of water-related tasks. It is widely used in municipal water distribution, industrial wastewater monitoring, and billing applications where custody transfer certification is required.
主要産業：
-
Public Utilities: Drinking water supply and distribution networks.
-
Industrial Water: Cooling water systems and utility water management.
-
Wastewater Management: Municipal treatment plants and effluent discharge monitoring.
